Oval Cold Saw Cutting Machine

Name: Oval Cold Saw Cutting Machine
Brand: JCCS
Price: 1 USD

Brand Name : JCCS

Model Number : JCCS-76-144

Place of Origin : HeBei China

MOQ : 1 set of

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15-30 work days

Packaging Details : Usually a high quality steel square tube making machine is loaded in a container. Depends on the size and weight of the machine.

Product name : Cold Cutting Machine

Origin : China

Applicable industries : Manufacturing Plant, Construction Work

Dimensions (L*W*H) : Custom made

Type : Pipe production line

Tube : Carbon steel

Main selling point : Easy to operate

Pipe shape : Round/square/rectangular tube

Contact Now

Cutting oval saw automatic pipe cutter cold blade CNC metal cutting saw

Introduction

The equipment is designed to enable fast blade changes, minimize downtime and ensure smooth and uninterrupted operation. Synchronization is achieved by using an AC servo motor control system for fastest response time and best results.

material	Q195 Q235 SPCC
Cutting range	Round tube:MAX114mm	thick:0.5～4.0mm
	Square tube:MAX90×90mm	thick:0.5～4.0mm
	Rectangular tube:MAX 50×90mm	thick:0.5～4.0mm
Production speed	80m/min(length 6 meter,dia.≤25mm)
Cutting length	1500-99999mm
Length tolerance	±1.5mm(speed diviation not more than 2%)；
Feeding direction
Operation height	800mm
Cutting burr height	Max:0.25mm；
Power supply	AC380V,3PH,50HZ

Mechanical length	542014801380mm(as per final drawing)
Motor list	Drive:18.5KW	PHASE servo motor
	feed: 3.3KW	PHASE servo motor
	saw: 22KW	PHASE servo motor
Linear guide	Hiwin Chinese Taiwan
Clamp	hydraulic pressure
Clamp block model	tape shape to avoid scratching the steel pipe
Oil supply system	Auto oil filling
Saw blade	High speed steel
main shaft gearbox	Special made
Gear rack	KH from Chinese Taiwan
Cable protection	Drag chain
Carriage protection	Safety bumpers for carriage are equipped at both ends
Equipment document	User’s manual & electrical diagram

Features

1. Smooth operation and high cutting precision
2. Noise reduction and safety
3. Superior cutting edge, no burr, cost saving
4. Low noise, no burr for cutting, safer operator, saving cost and material.
5. Automatic, intelligent and pollution-free operation
6. New function: remote control system to solve problems in time.

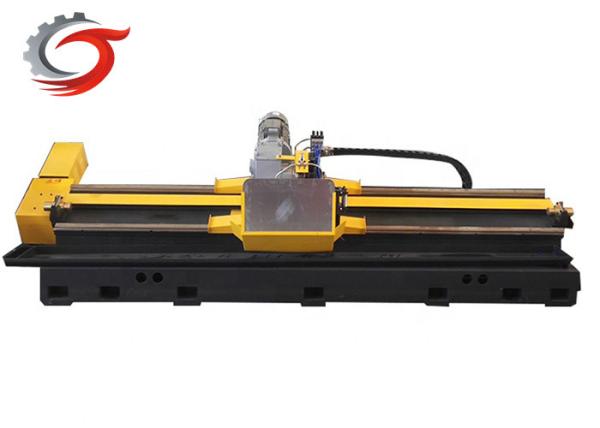

Oval Cold Saw Cutting Machine

Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
